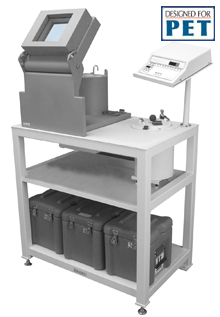

PET Unit Dose Table


Designed for PET hot labs with limited space, the PET Unit Dose Table includes added features to help maximize the work area and the protection. The table includes the 042-433 Compact L-Block with Built-in Dose Calibrator Shield and the 039-412 Sharps Container Shield.

The Compact L-Block with Dose Calibrator Shield features a large 8" x 8" x 4" lead glass window with adjustable window angle, 1.5" thickness lead shielding in front, and 1" thick lead in the base and in the chamber shield. It is designed to accommodate a chamber that is through mounted in the countertop. The chamber shield accommodates most dose calibrators.

The Sharps Container Shield is constructed of steel and lined with 1" thick (2.5 cm) lead. It features a lockable sliding cover for container removal and a hinged top door for syringe disposal.

Shipped completely assembled, the Unit Dose Table eliminates the need for on-site lifting equipment. A simple pallet jack is all that is required to move the unit. Once the Dose Calibrator Chamber is placed in the shield, the chamber support shelf provides 1" thick lead shielding. The Dose Calibrator display unit mounts on a stand above the countertop to further maximize work space.

A spacious bottom shelf can hold several PET shipping containers. The middle shelf provides convenient storage for syringe shields and other small items.

In applications where additional shielding is required, the optional 042-434 Lead Brick Cave is available.

Specifications:

042-448 PET Unit Dose Table:

042-433 Compact L-Block with Dose Calibrator Shield:

039-412 High-Energy PET Sharps Container Shield:
