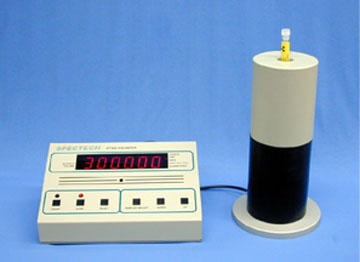

(Shown with SP78W-1 Well Detector which is sold separately)
The ST360W is a versatile, general purpose counter/timer for use with either a scintillation or GM detector. The unit features a large, 6-digit LED display with selection for counts, time, countrate, high voltage or alarm level. USB and serial outputs are included for connecting to an optional PC or Macintosh computer for data transfer and automated operation if required.
A fully regulated high voltage power supply with digital control is used to power the scintillator or GM detector and set the energy range or operating plateau. Various operating modes include preset time, preset alarm level and digital ratemeter. A remote position allows operation with a computer if required.
Specifications Inputs: MHV connector. Accepts standard scintillation detectors with single HV/signal cable. Built-in preamplifier. BNC connector for GM detector. Energy Range: <20kev to>2MeV Resolving Time: Less than 1µsec. High voltage: 0 to +1200 volts, digitally selectable in 20 volt increments. Display: 6-decade LED, 1 in. numerals displays counts, preset counts. time, preset time, CPM, CPS, alarm level, and high voltage. Modes: Digital Counter or Digital Ratemeter, 999999 capacity. Count for preset time 1-900000 sec or continuous, counts/min., counts/sec., set alarm level 0-999999, set high voltage 0-1200v, and computer controlled. Audio: Piezo alerter for countrate and preset alarm level. Data Link : USB 1.1, DB-9 connectors accepts RS-232 serial cable for IBM and Macintosh computers. Power: Input 9 volt DC, at 500mA from AC line/charger. Specify 110-120, 220-240 VAC at time of order. Battery option: Requires installation of 4 x D size NiCd rechargeable batteries not supplied). Dimensions: 12 in. W, x 8 in. H, x 4.5 in. D.
Specifications:
Display: 6-decade LED, 1 in. numerals displays counts, time, preset
time, CPM, CPS, alarm level, and high voltage.
Modes: Count for preset time, counts/min., counts/sec., set alarm level
0-999999, set high voltage 0-1200v, and computer controlled.
Audio: Piezo alerter if countrate exceeds preset level.
Data Link : USB 1.1 and DB-9 connectors for RS-232 serial cable for IBM and
Macintosh computers.
Power: Input 9 volt DC, at 500mA from AC line/charger. Specify 110-120,
220-240 VAC at time of order.
Dimensions: 12 in. W, x 8 in. H, x 4.5 in. D.
 |
|
 |
Software:
LABLINK emulation software. Windows program runs on most IBM compatible PC's including EGA, VGA, SVGA, graphics systems. Optional MAC version run under System 7 or higher.Bi-directional data link offers full control of all functions including preset time, countrate in CPM or CPS, alarm level, high voltage, start, stop, reset, and data transfer. Real-time display of simulated analog ratemeter with auto-ranging, digital ratemeter in CPM or CPS, count, elapsed time, preset count, preset time, high voltage setting, acquisition time, and run number. Data is loaded into spreadsheet compatible files for transfer.
|
